Team Members: Corey Jamison, Mark Langen, Joel Keeling

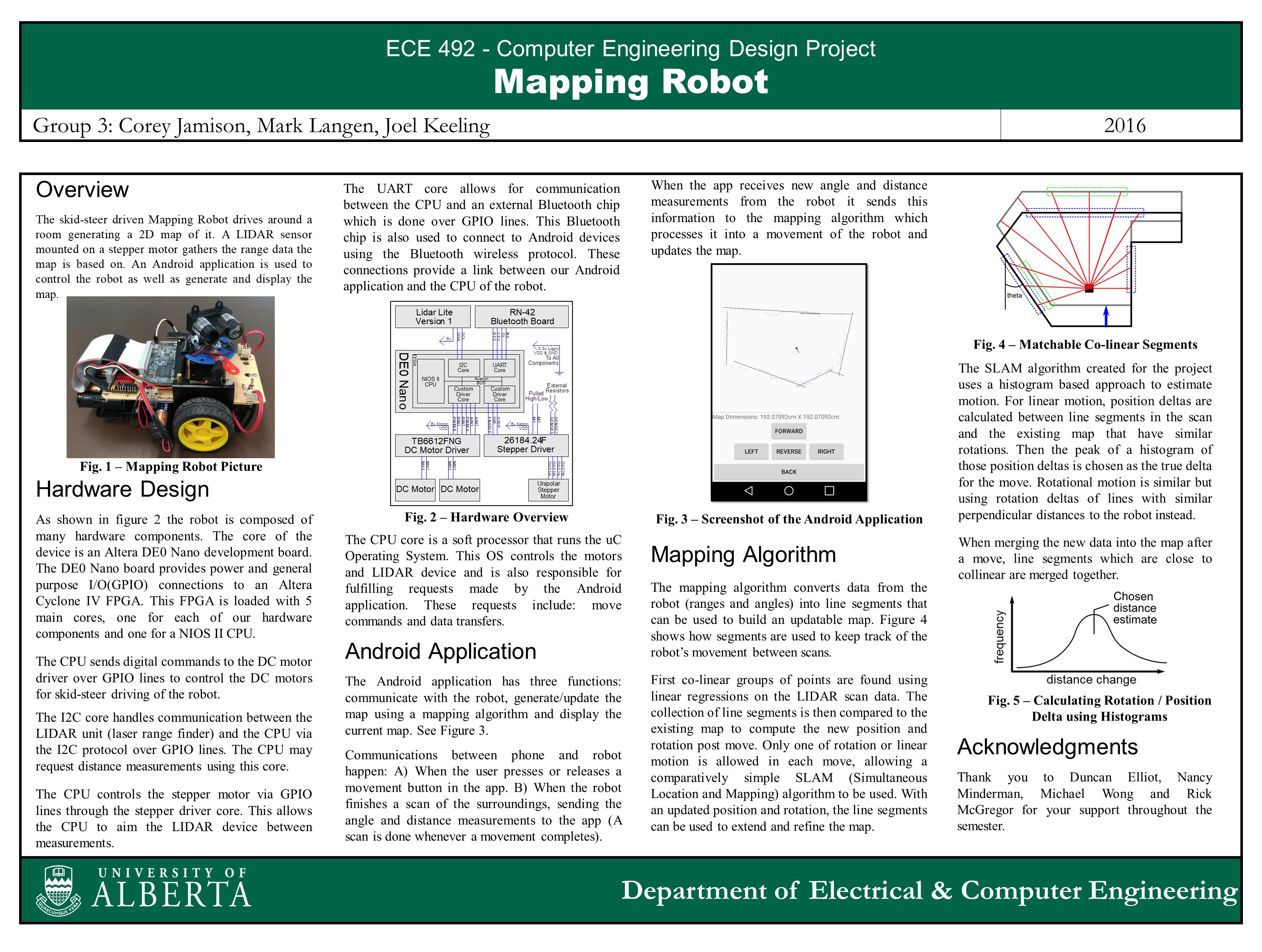

The skid-steer driven mapping robot drives around a room generating a 2D map of it. A LIDAR sensor mounted on a stepper motor gathers the range data the map is based on. An Android app is used to control the robot as well as generate and display the map.

Team Members: Andrew Zhong, Patrick Kuczera, Shahzeb Asif

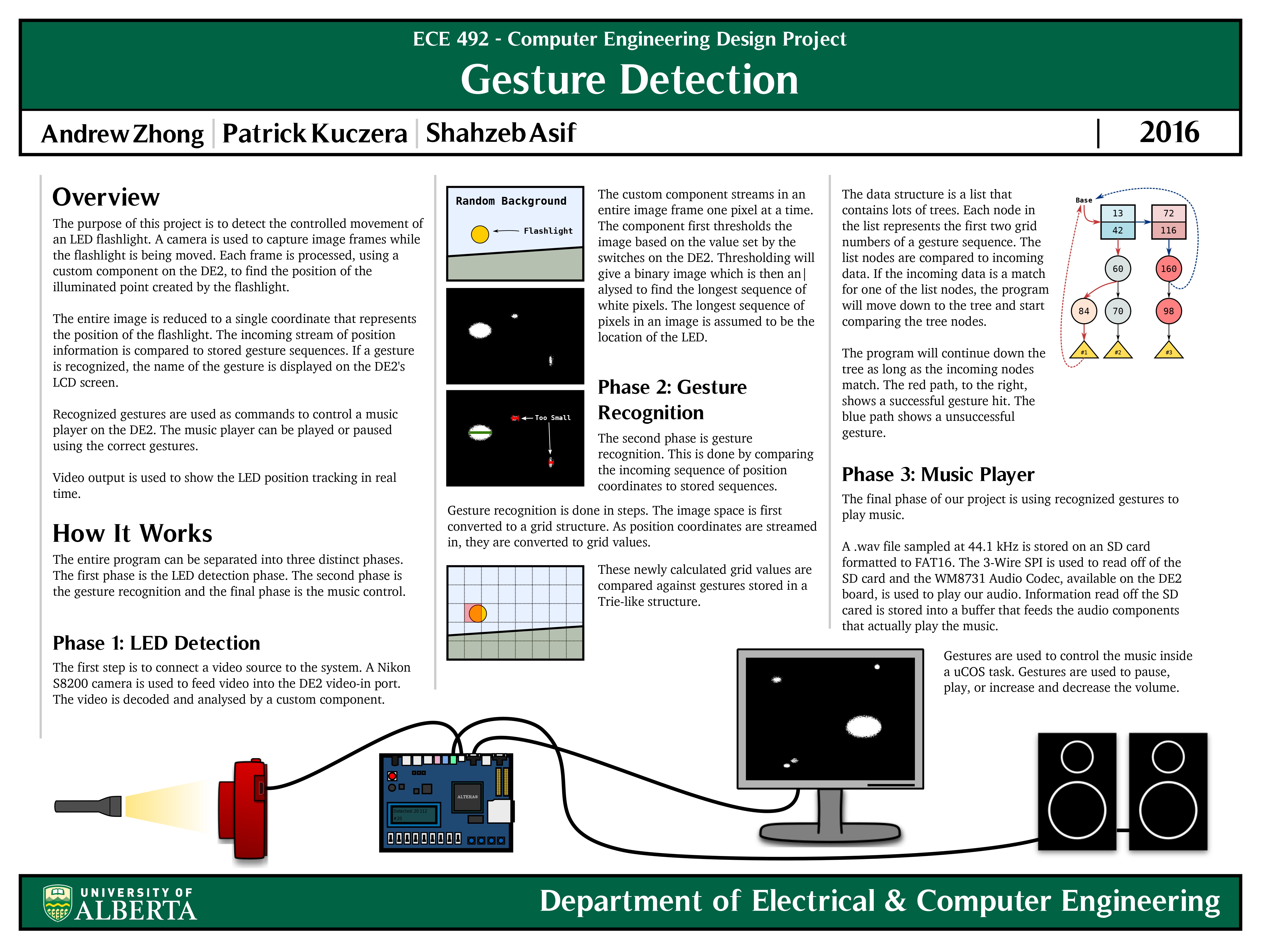

The purpose of this project is to detect the controlled movement of an LED flashlight. A camera is used to capture image frames while the flashlight is being moved. Each frame is processed, using a custom component on the DE2, to find the position of the illuminated point created by the flashlight. The entire image is reduced to a single coordinate that represents the position of the flashlight. The incoming stream of position information is compared to stored gesture sequences. If a gesture is recognized, the name of the gesture is displayed on the DE2's LCD screen. Recognized gestures are used as commands to control a music player on the DE2. The music player can be played or paused using the correct gestures. Video output is used to show the LED position tracking in real time

Team Members: Michael Bloin, Jenna Hatchard, Jared Cuglietta

The Smart Bandage is a small, embedded solution for wound monitoring with medically useful sensors and Android and Web applications targeted at Doctors and Nurses. Temperature, humidity, and surface moisture sensors embedded within the bandage provide data crucial to medical professionals. This data allows Doctors and Nurses to ensure that the wound is in a state conducive to healing, and informs them when the dressing needs changing. With a Bill of Materials of $25 the bandage could provide significant cost savings over the $1000/day cost of homecare by a nurse.

Team Members: Brendan Bruner, Divyank Katira, Oleg Oleynikov, Jeffrery Ryan

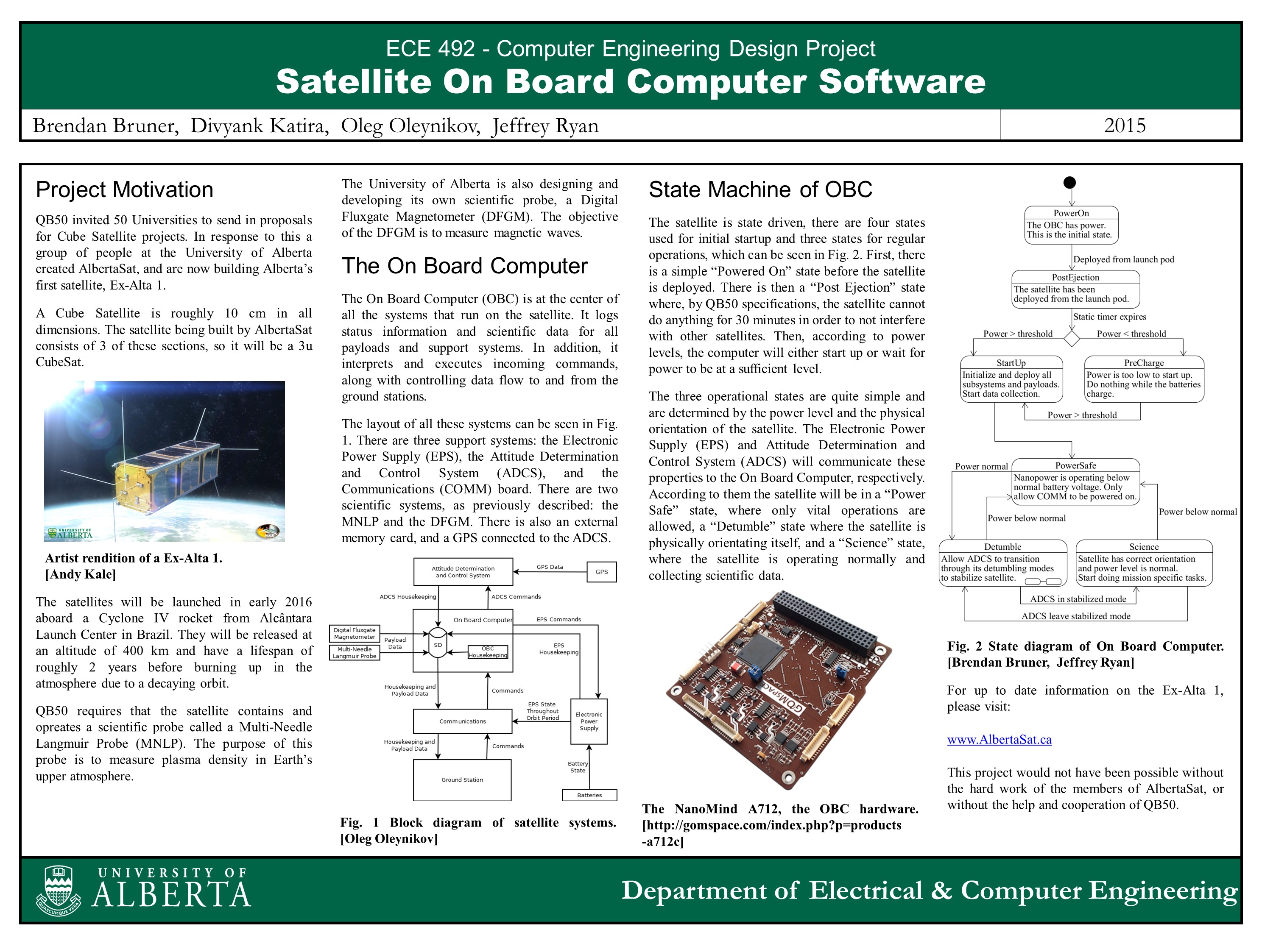

QB50 invited 50 Universities to send in proposals for Cube Satellite projects. In response to this a group of people at the University of Alberta created AlbertaSat, and are now building Alberta’s first satellite, Ex-Alta 1. A Cube Satellite is roughly 10 cm in all dimensions. The satellite being built by AlbertaSat consists of 3 of these sections, so it will be a 3u CubeSat.

Team Members: Qiushi Jiang, Edwin Rodrigez, Peter Crinklaw

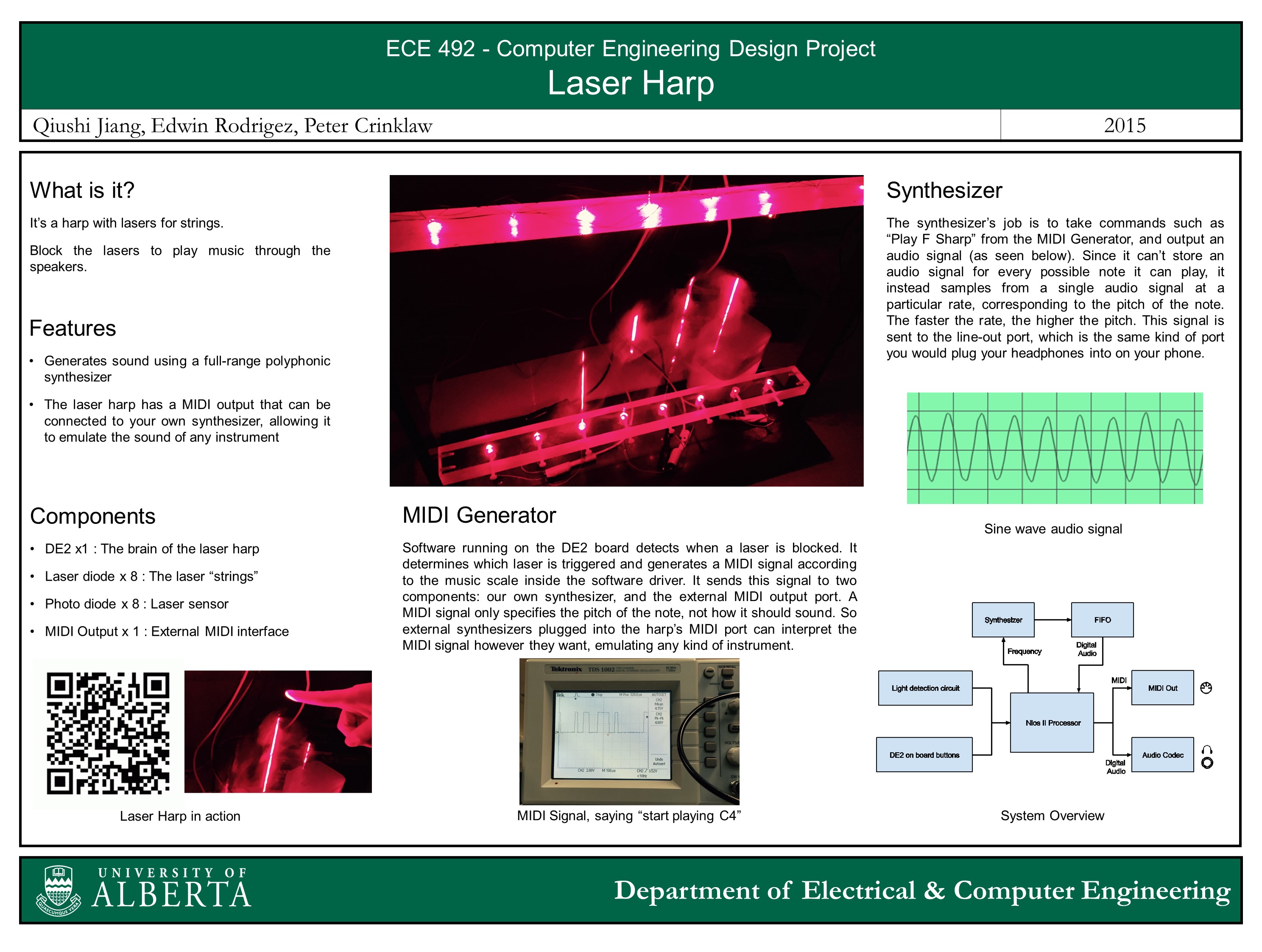

It's a harp with lasers for strings. Block the lasers to play music through the speakers.

Team Members: Alexander Cheung, Micheal Federau, Krista Oribello

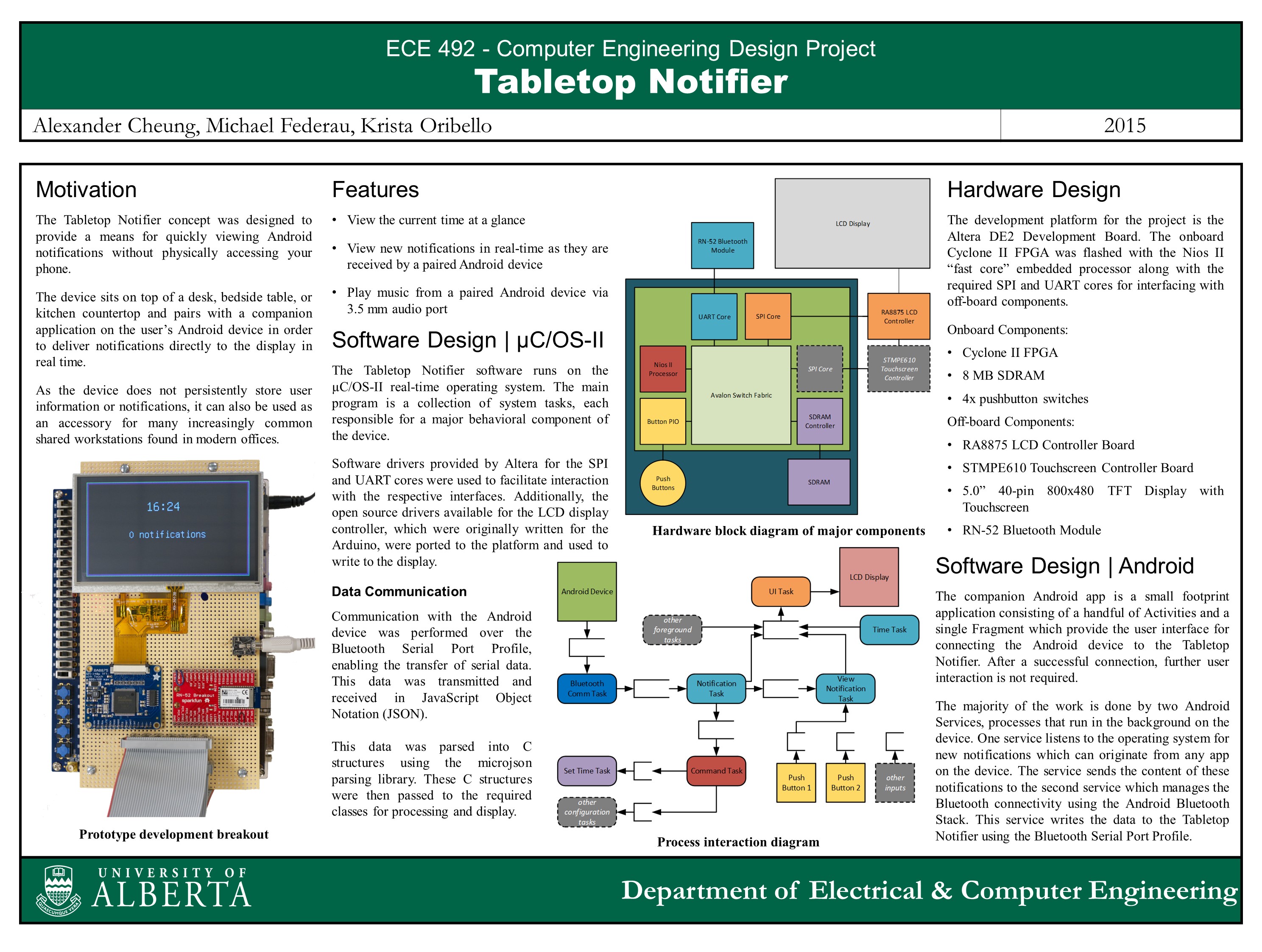

The Tabletop Notifier concept was designed to provide a means for quickly viewing Android notifications without physically accessing your phone. The device sits on top of a desk, bedside table, or kitchen countertop and pairs with a companion application on the user’s Android device in order to deliver notifications directly to the display in real time. As the device does not persistently store user information or notifications, it can also be used as an accessory for many increasingly common shared workstations found in modern offices.

Team Members: Brad Davis, Nelson Stoik, Zeshan Nurani

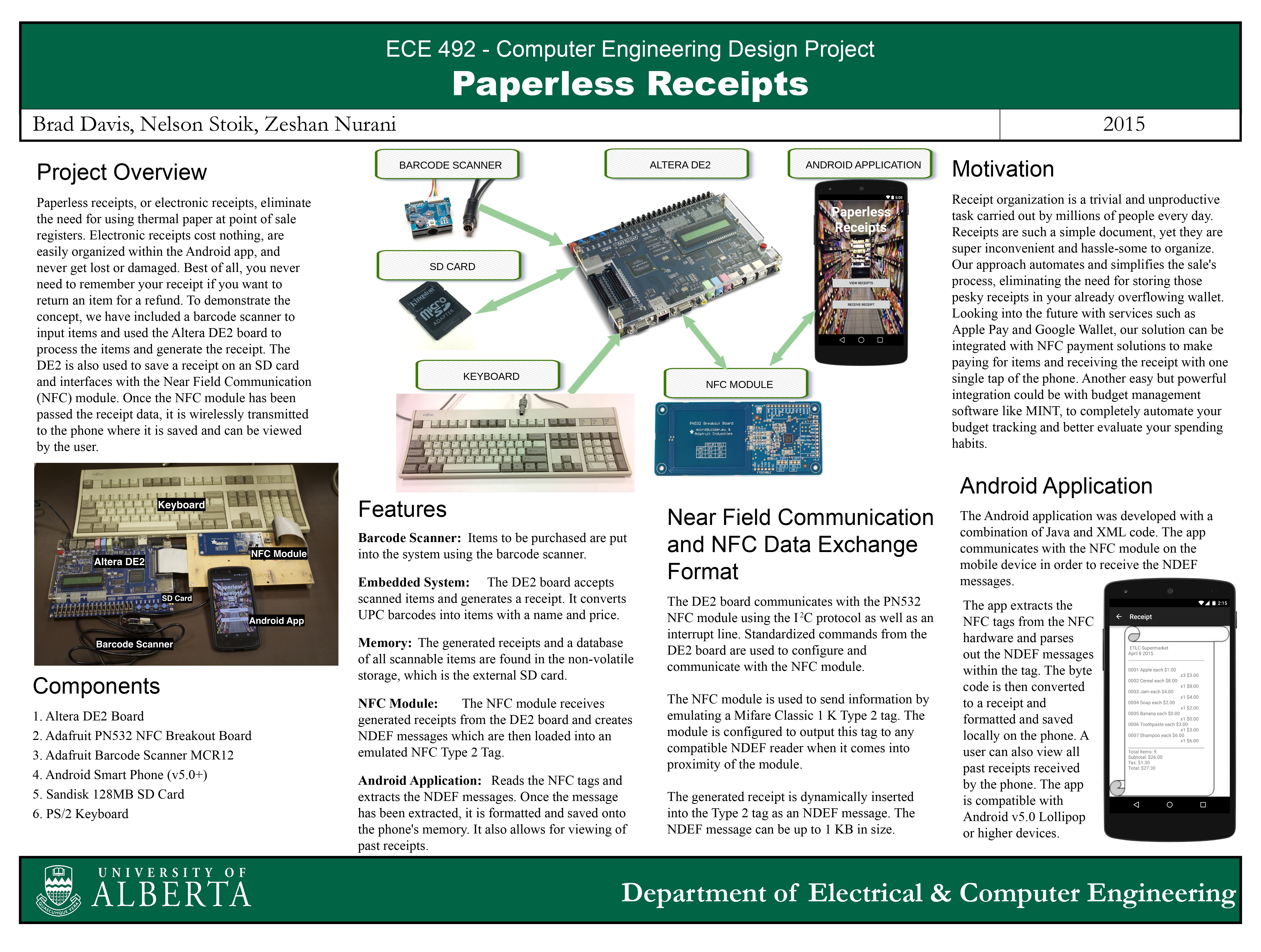

Paperless receipts, or electronic receipts, eliminate the need for using thermal paper at point of sale registers. Electronic receipts cost nothing, are easily organized within the Android app, and never get lost or damaged. Best of all, you never need to remember your receipt if you want to return an item for a refund. To demonstrate the concept, we have included a barcode scanner to input items and used the Altera DE2 board to process the items and generate the receipt. The DE2 is also used to save a receipt on an SD card and interfaces with the Near Field Communication (NFC) module. Once the NFC module has been passed the receipt data, it is wirelessly transmitted to the phone where it is saved and can be viewed by the user.

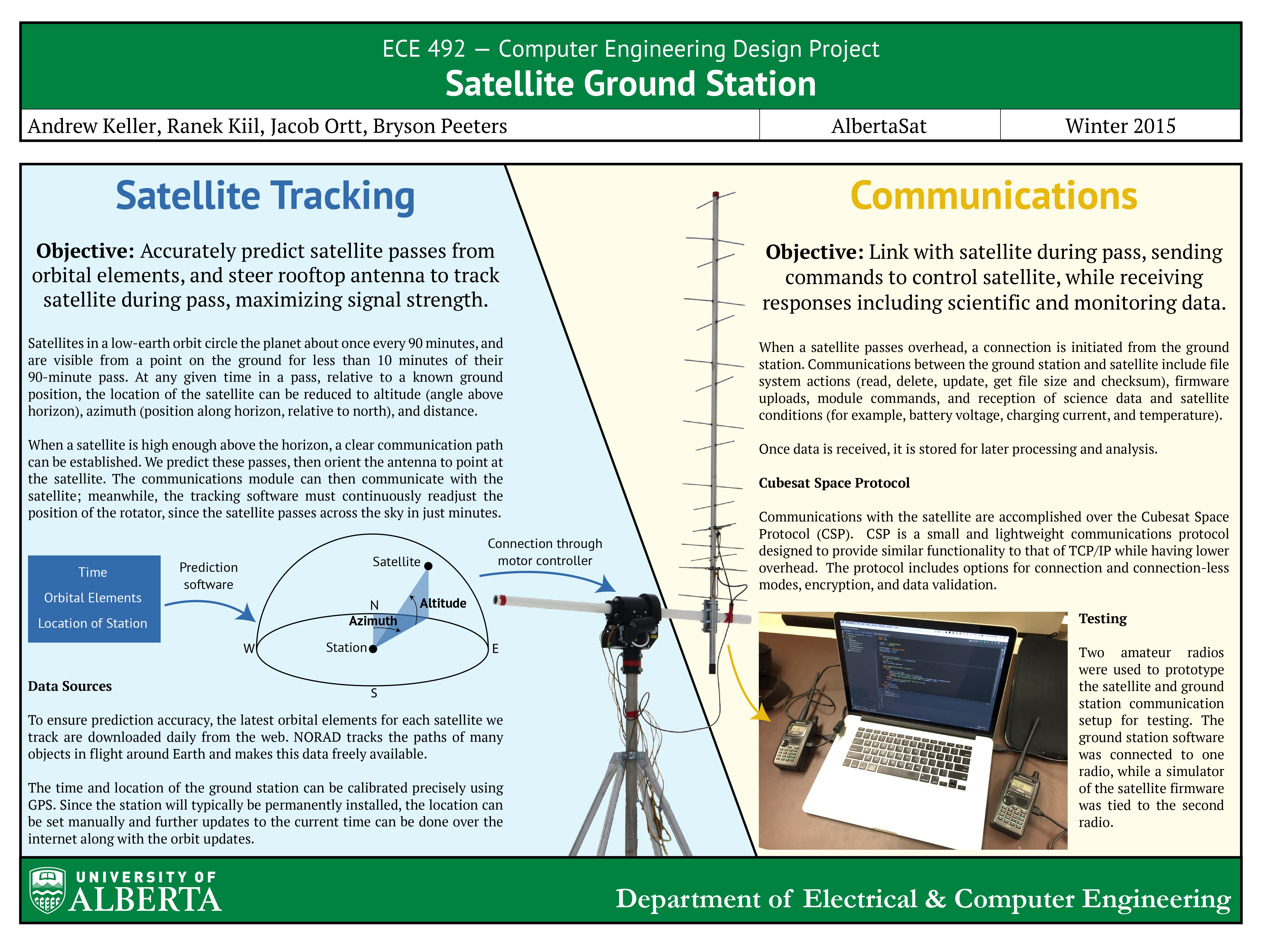

Team Members: Andrew Keller, Ranek Kiil, Jacob Ortt, Bryson Peeters

Satellites in a low-earth orbit circle the planet about once every 90 minutes, and are visible from a point on the ground for less than 10 minutes of their 90-minute pass. At any given time in a pass, relative to a known ground position, the location of the satellite can be reduced to altitude (angle above horizon), azimuth (position along horizon, relative to north), and distance. When a satellite is high enough above the horizon, a clear communication path can be established. We predict these passes, then orient the antenna to point at the satellite. The communications module can then communicate with the satellite; meanwhile, the tracking software must continuously readjust the position of the rotator, since the satellite passes across the sky in just minutes

Team Members: Ryan Corpuz, Hang Peng, Jingjing Liang

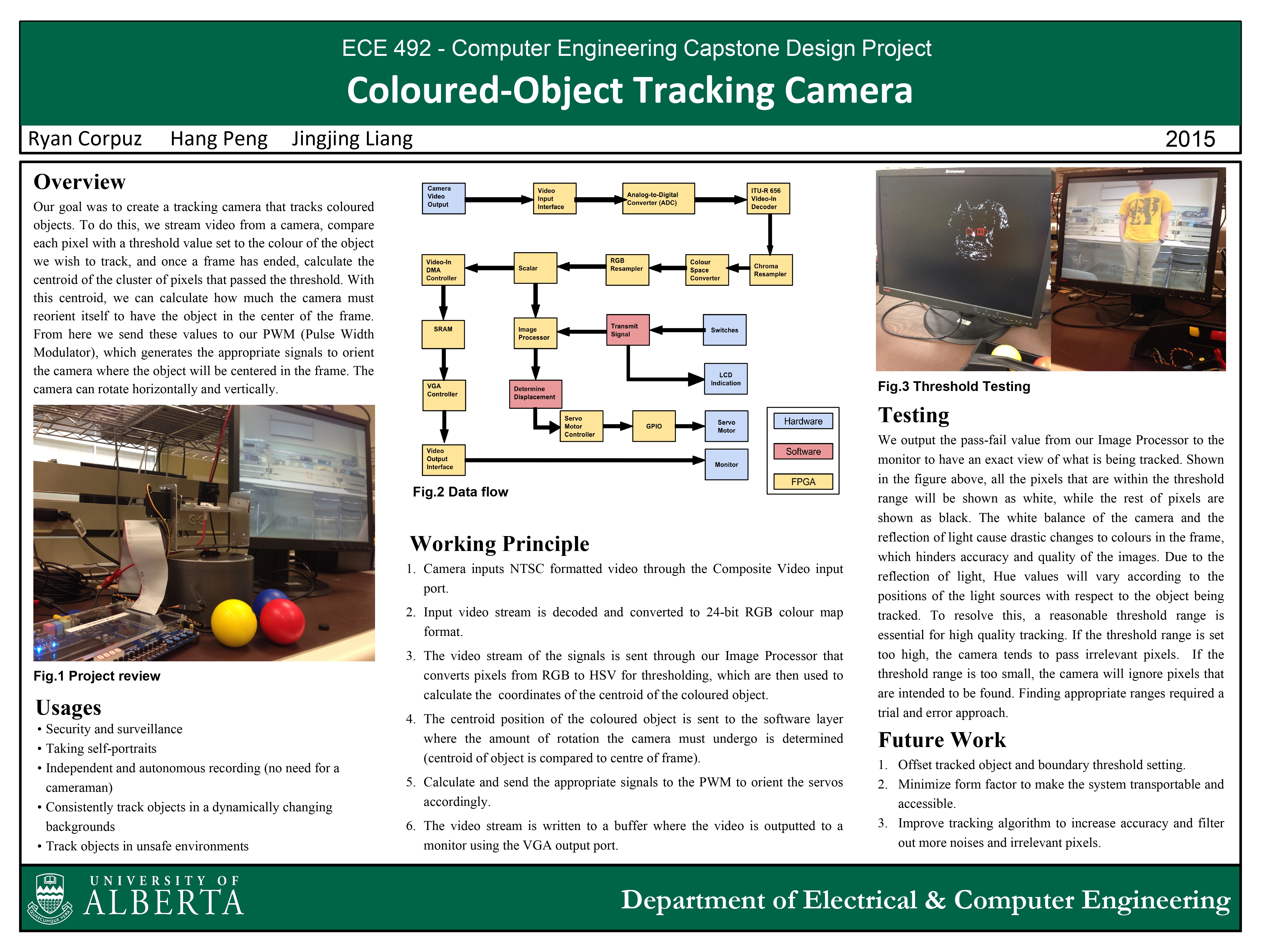

Our goal was to create a tracking camera that tracks coloured objects. To do this, we stream video from a camera, compare each pixel with a threshold value set to the colour of the object we wish to track, and once a frame has ended, calculate the centroid of the cluster of pixels that passed the threshold. With this centroid, we can calculate how much the camera must reorient itself to have the object in the center of the frame. From here we send these values to our PWM (Pulse Width Modulator), which generates the appropriate signals to orient the camera where the object will be centered in the frame. The camera can rotate horizontally and vertically.

Team Members: Mike Pappas, Nigel Himmelreich, Eric Anderson

Inspired by a disposable “smart bandage” concept for monitoring the healing progress of a wound, the NFC Sensor System is a proof of concept that a small, ultra-low powered device can wirelessly transmit sensor data to a host device. Using the Texas Instruments MSP430, the system is able to read temperature and light data and transmit the values to the Altera DE0 where they can be packaged and sent to the host Android device for viewing and logging.
